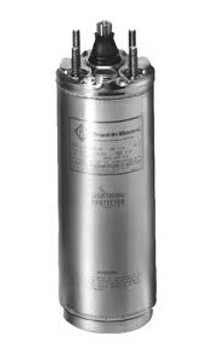

Franklin Submersible Motor 1/2HP 115Volt 3-Wire
- Franklin Electric Submersible Motor
- 1/2HP 115 Volt 3-Wire Franklin Electric 4" Submersible Motor
- 1/2 HP SS Motor
- Model: 2145049004S
- 115 Volts
- 3-Wire
- 1 Phase
- 60 Hz
- Corrosion-Resistant All Stainless Steel Exterior Construction
- Stainless Steel Splined Shaft
- Hermetically-Sealed Windings
- Anti-Track Self-Healing Resin System
- Water Lubrication
- Filter Check Valve
- Kingsbury-Type Thrust Bearing
- Pressure Equalizing Diaphragm
- Built-In Lightning Arrestors (all single-phase; 200 and 230 Volt three-phase)
- Removable “Water-Bloc” lead installed In North American 60 Hz water well motors. Consult factory for additional leads.
- UL 778 Recognized (North American Voltages)
- CSA Certified
- ANSI/NSF 61 Certified
- NEMA Mounting Dimensions
- Rotation: single-phase - CCW; three-phase electrically reversible
