Industrial Duty, Long Lasting, Dependable Pumps
This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plunger and standard NBR (Buna-N) seals and O-rings.

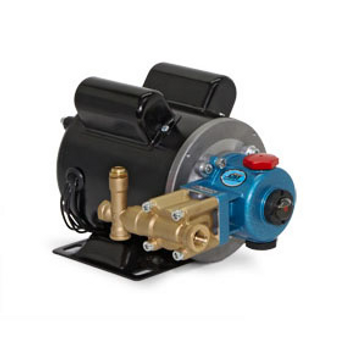

The 1CX is the perfect fit for misting applications that require 0.5 GPM or less. With seals that run thousands of hours before requiring any servicing, the 1CX is small but has the same life expectancy as our industrial products. This ultra-compact, direct-drive single plunger misting-cooling pump includes a pressure regulator for maintaining pressure with multiple nozzles. 1CX Series pumps couple to custom-designed 1/4 or 1/2 HP single-phase 60 Hz motors to fit in small spaces. There is a 50 Hz motor available as well. An optional pulse hose reduces pulsation and lowers the amp draw.
| Max Flow | 0.13 gpm / 0.5 lpm |
| Max Pressure | 1250 |
| Inlet Port Size | 3/8" NPT(F) |
| Discharge Port Size | 1/4" NPT(F) |
| RPM | 1750 |
| Drive Type(s) | Direct |
| Material | Brass |
1CX Data Sheet
