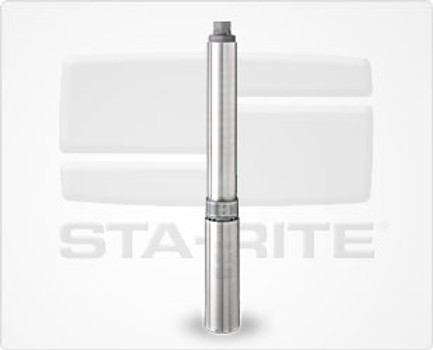

Sta-Rite S5P4HS05231 Well Pump
Trimline (TM) Series pumps are 3-3/4" in diameter to fit inside 4" or larger well casings
FEATURES:
Ports:
Motor: 1/2 Horsepower, Single Phase, 3-wire
Specifications:
HORSEPOWER: 1/2 HP
PERFORMANCE SERIES: 5 GPM
NUMBER OF STAGES: 13
VOLTAGE: 230v AC, 1-phase
NUMBER OF WIRES: 2 wires plus ground
SHELL: Stainless Steel
DIAMETER: 3-3/4"
LENGTH: 27-1/2"
WEIGHT: 28 lbs
DISCHARGE: 1-1/4" NPT, Stainless steel
DISCHARGE BEARING: Nylatron (R)
IMPELLERS: Acetal
DIFFUSERS: Polycarbonate
SUCTION CAPS: Polycarbonate with stainless steel insert
THRUST PADS: Proprietary spec
SHAFT END COUPLING: Stainless Steel
INTAKE: Stainless Steel
INTAKE SCREEN: Stainless Steel
CABLE GUARD: Stainless Steel
CHECK VALVE: Acetal
AGENCY LISTINGS: CSA
